Flexicoil 1740 2340 2850 3350 3850 4350 Air Cart
On this site you can buy repair books for tractors, combines, wheel loaders, skid-steer loaders, hydraulic excavators, backhoe loaders, crawler tractors and another agri & construction machinery.If you cannot find service manuals which you need please contact with US AGROMANUAL@gmail.com
FLEXICOIL AIR CART SERIES 40 AND 50 SERVICE MANUAL
Form no. 84329222
Language: English
Number of pages: 1290
Models:
1740 / 2340 PIN Y9S015001 and above
2850 / 3350 PIN Y8S015001 and above
3850 / 4350 PIN Y9S015001 and above
Main sections:
INTRODUCTION
REAR AXLE SYSTEM
Non-powered rear axle

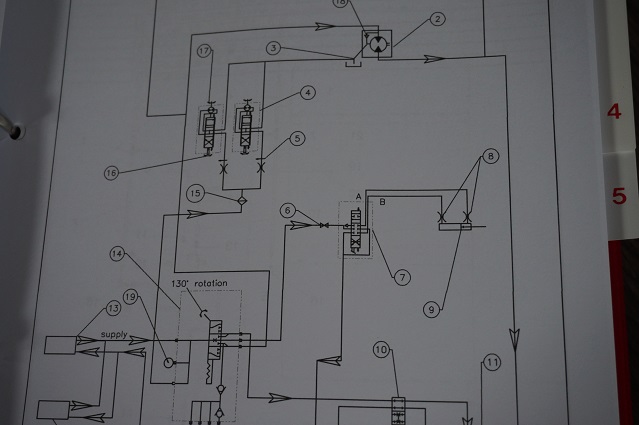

HYDRAULIC SYSTEMS
Hydraulic systems
Reservoir, cooler, and filters
Seeding hydraulic circuit
Metering system hydraulic circuit

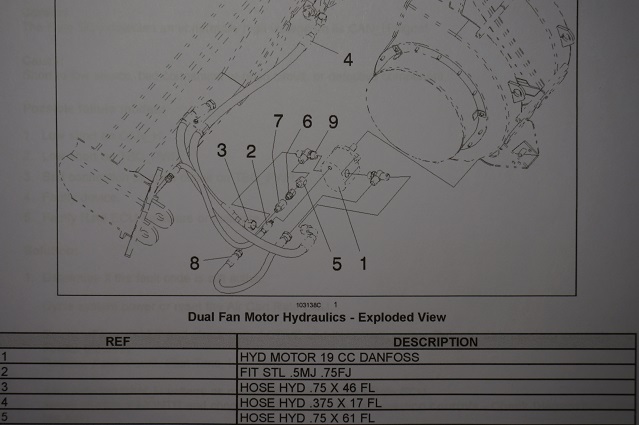

Hydraulic seeding fan system
WHEELS
Rear wheels
Caster wheels

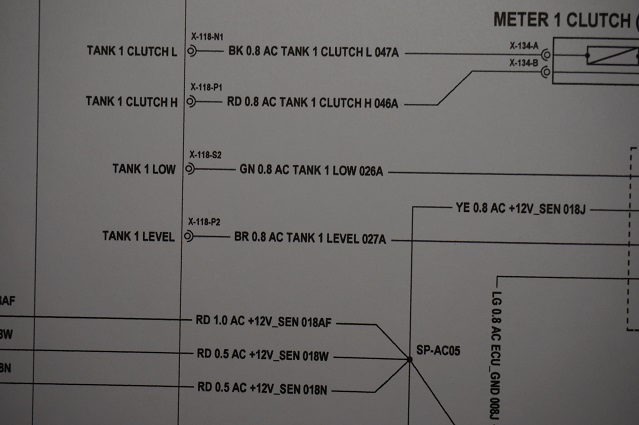

ELECTRICAL SYSTEM
Electrical system

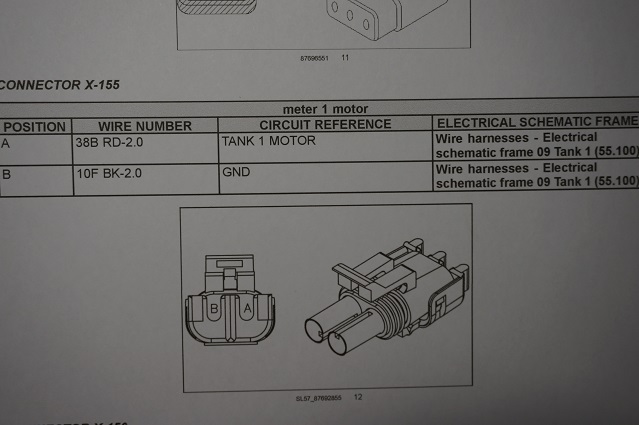

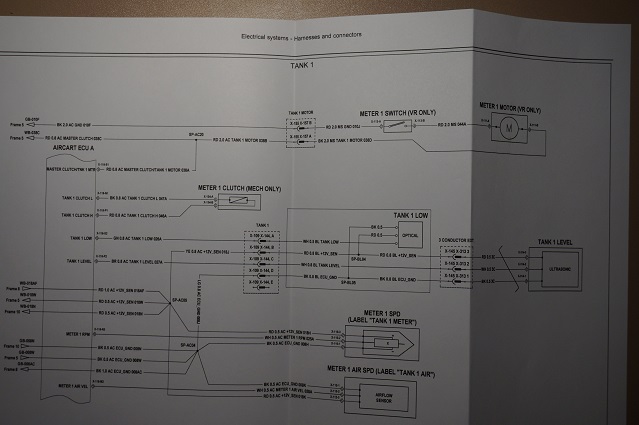

Harnesses and connectors
Alternator
External lighting
Seeding control system
Cab seeding controls
Auger
Electronic modules
Split meter control system

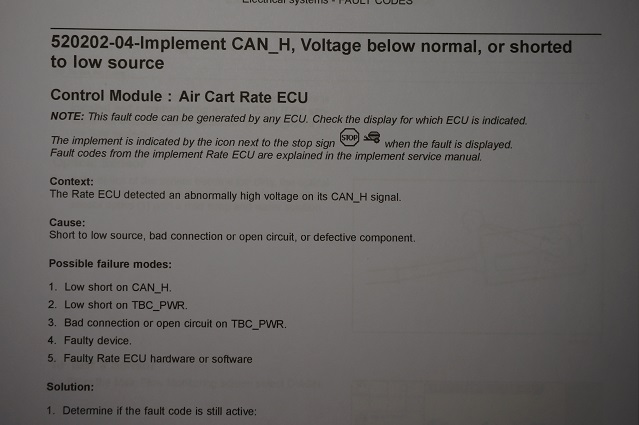

FAULT CODES
METERING SYSTEM
Split meter control system

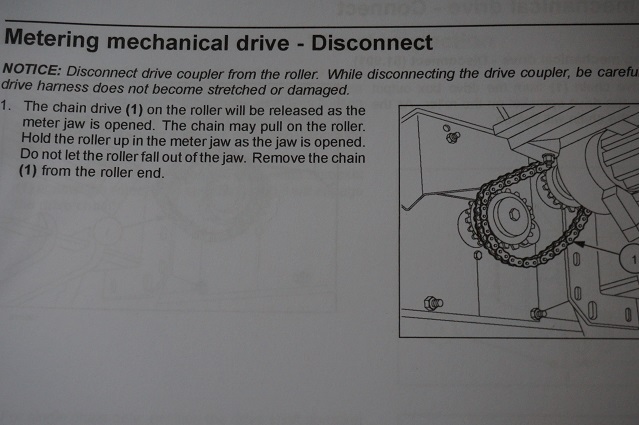

Metering mechanical drive
Product metering
SEEDING
Product handling and delivery drive system
Seeding fan system
Air distribution system
PAPER VERSION:
PAPER VERSION SERVICE MANUAL + OPERATOR'S MANUAL (1740 and 2340)
