New Holland TR96 TR97 TR98 Combine
On this site you can buy repair books for tractors, combines, wheel loaders, skid-steer loaders, hydraulic excavators, backhoe loaders, crawler tractors and another agri & construction machinery.If you cannot find service manuals which you need please contact with US AGROMANUAL@gmail.com
NEW HOLLAND COMBINE SERIES TR SERVICE MANUAL
Form no. 40009630
Models: TR66 & TR97 & TR98
Language: English
Number of pages: 1960 with A3 format schematics

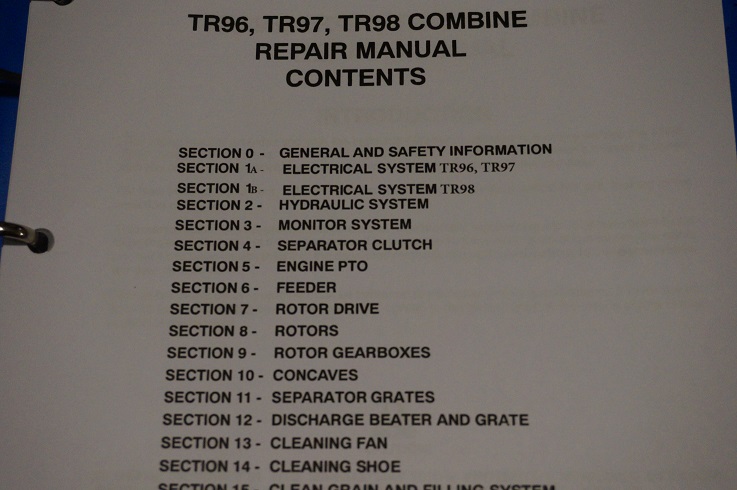

Main Sections:
General and safety information

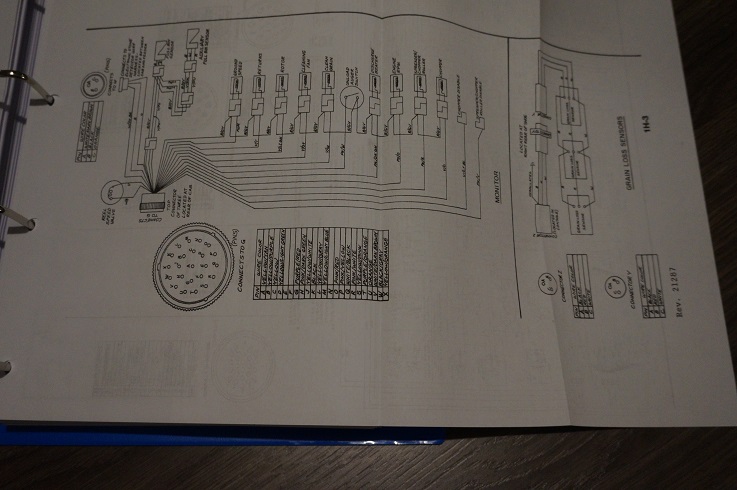

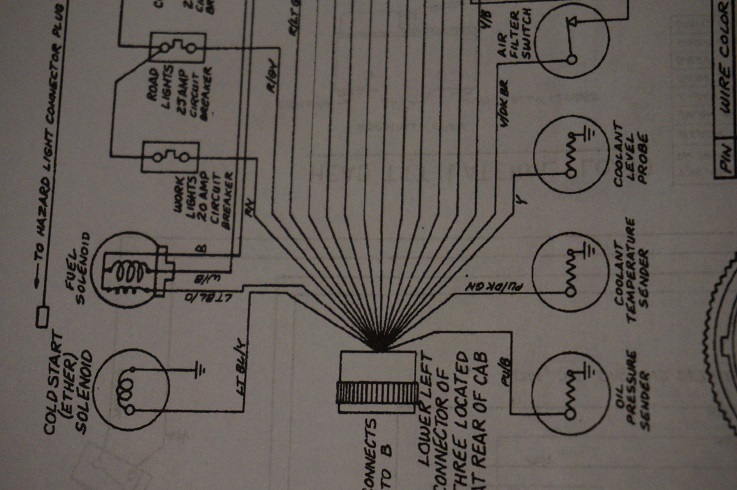

Electrical system (full wiring schematics)

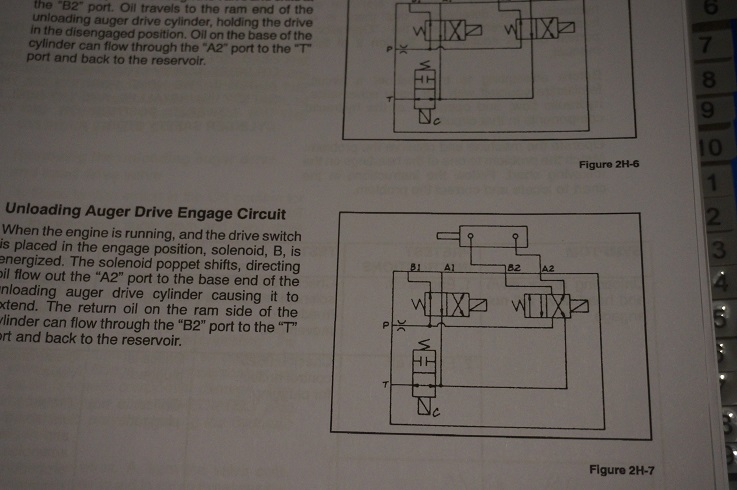

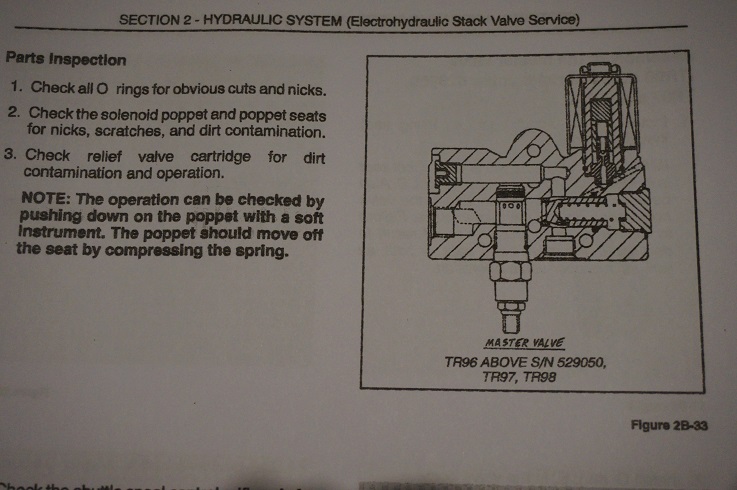

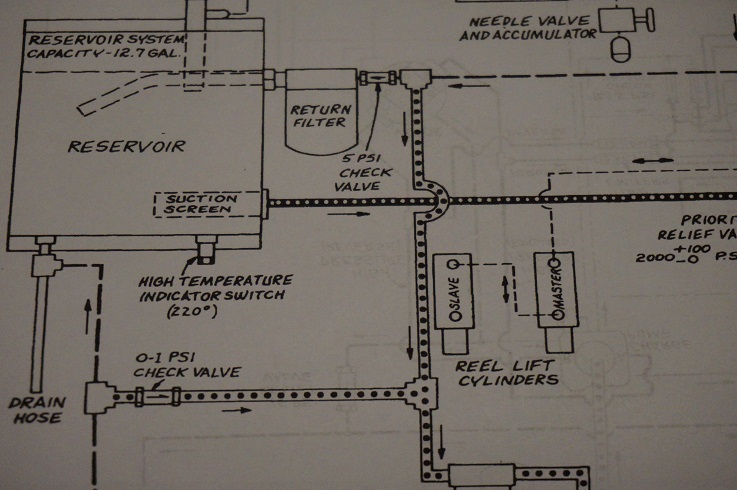

Hydraulic system (full hydraulic schematics)
Monitor
Separator clutch
Engine
PTO

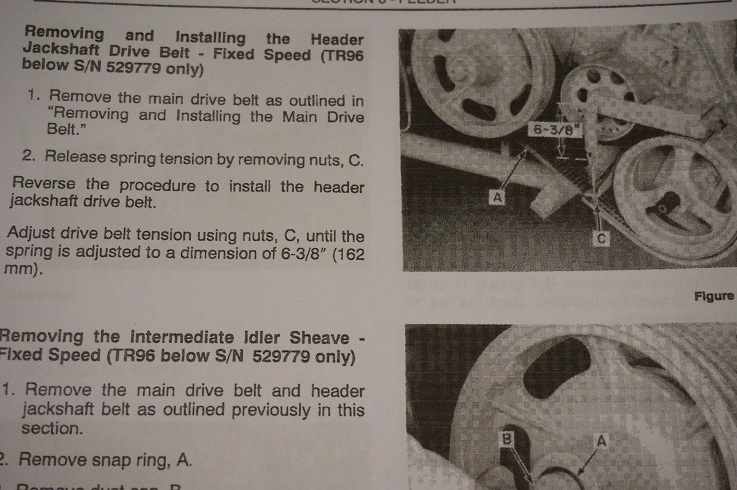

Feeder
Rotor drive
Rotors
Rotor gearboxes
Concaves
Separator grates
Discharge beater and grate
Cleaning fanCleaning shoe

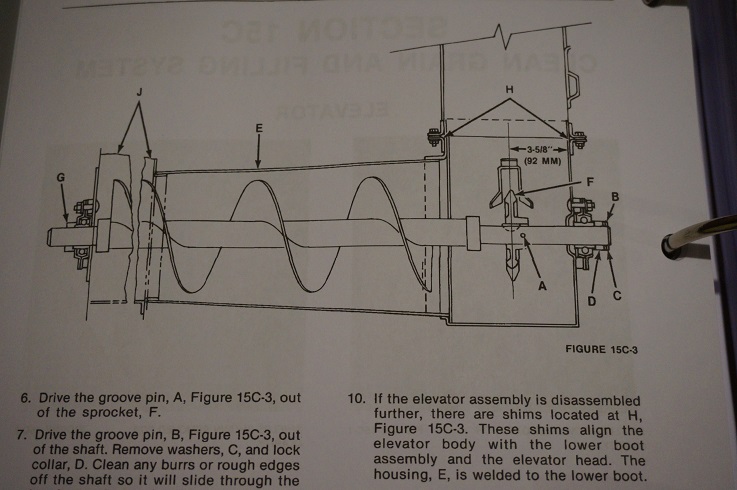

Clean grain and filling system
Tailings system
Unloading system
Main shaft

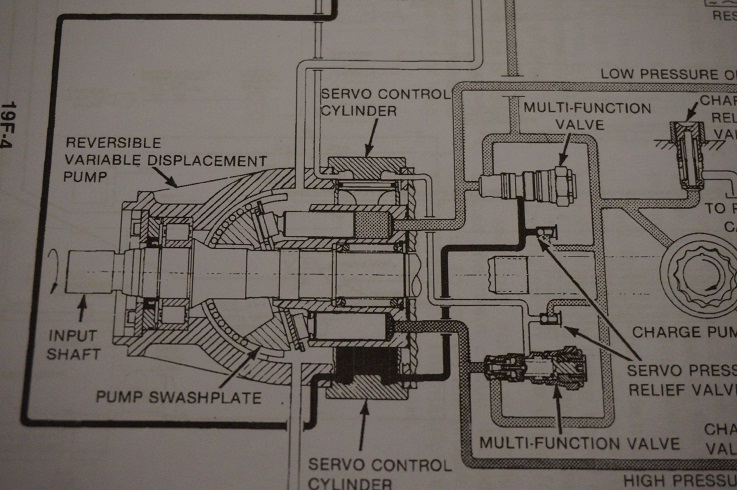

Hydrostatic system
Transmission
Powered rear axle

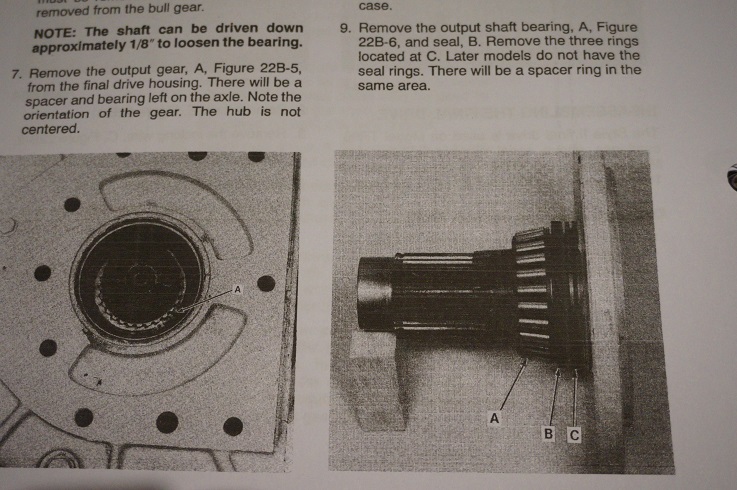

Final drives
Brakes
Cylinders
 |
 |
      |
      |
PAPER VERSION:
